Description

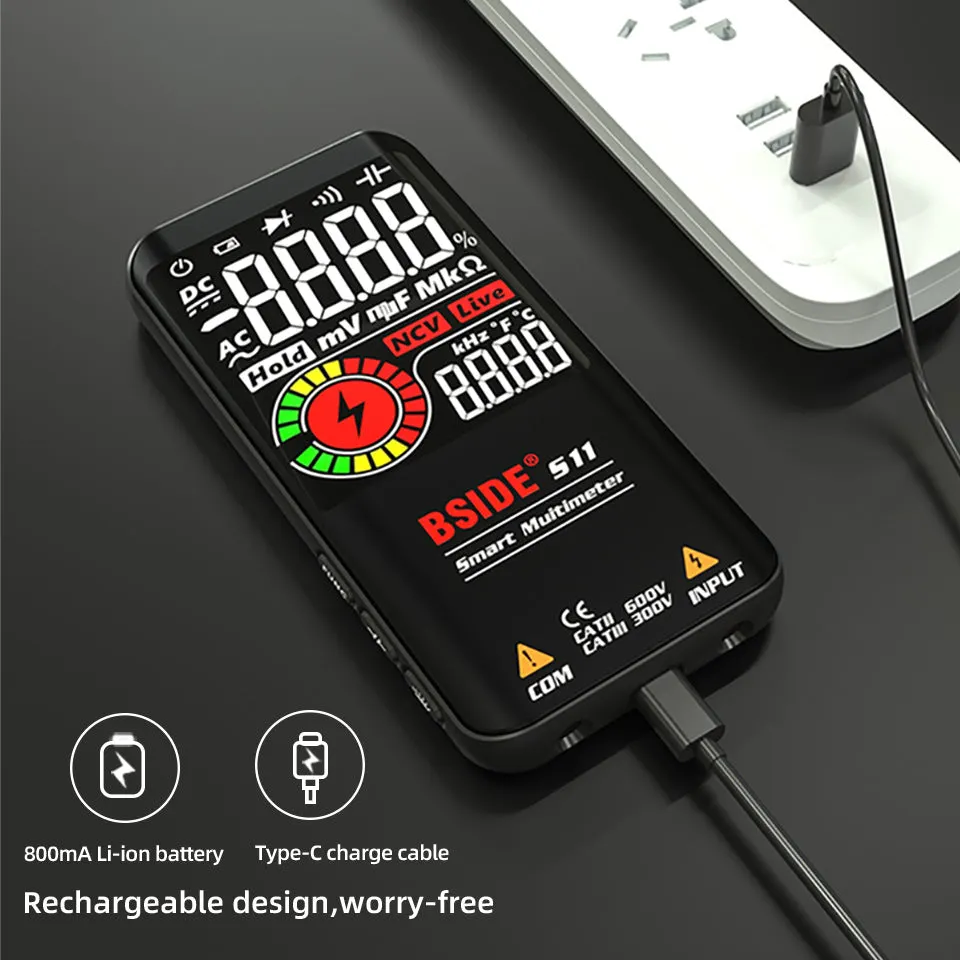

The General Purpose Digital Multimeter is a professional-grade multimeter.
It has convenient features like Data Hold, Large Screen and Non-contact Voltage Detection to make measurements easier than ever before.
KEY FEATURES
- Advanced Testing and Measuring for Professionals: Designed to be used by both professionals in a commercial setting, or DIYers that need more from their digital multimeter. - Non-Contact Voltage Detection: The General Purpose Digital Multimeter includes integrated non-contact voltage detection to help get the job done faster. - Accurate Measurements Every Time: Able to measure voltage, current, resistance, continuity capacitance & frequency on one device with the safety and accuracy expected of professional grade equipment. - Durable & Built-to-Last Design: Made of high quality materials providing protection against short circuits; constructed to withstand frequent use in various work environments.
- Perfect Tool For Any Level Technician: No matter your experience level, this is perfect for novice users.
SPECIFICATION
Product Model: S10 Maximum allowable voltage: 620V DC or 620V AC (RMS) Frequency: 1Hz~ 60KHz Resistance: 60MQ On-off buzzer: When the measured resistance < 500 Capacitance: 1nF~99.99mF Diode: Automatic recognition of diodes less than 3.0V Duty cycle: 0.1%~99.9% (ACV 2~620V) Voltage detection alarm: 90V~1000V AC voltage test: 12V~1000V Maximum display value: 9999 digits Auto-off time: about 5 minutes Weight: about 112g (without battery)
Product size: 143.4*70.9*15.7mm
PACKAGE INCLUDES
1 * Digital Multimeter Kit
NOTES
Battery NOT INCLUDED
Please allow 2-3cm error due to manual measurement. Please make sure you do not mind before purchasing.
Color may not appear as exactly as in real life due to variations between the computer monitors.
